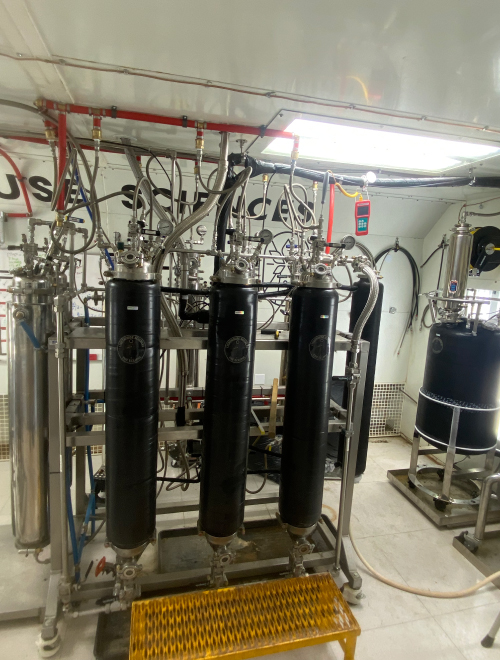

Extractor Chiller System Build Outs
Low Temperature Extractor Cooling System
- Heat Rejection: water cooled
- Temperature Range: -94f to 140f
- Cooling Capacity: 6kW @ -85f
- Flow Rate: 4 GPM @ 65 PSI
- Fluid: hfe-7200
- Self Cooled Stainless Steel Tank
- Power Requirement: 2, 208-230v 60hz 70amp circuits
- Dimensions: 70″W X 40”D X 53”H
- Pump Type: SS centrifugal
- Wetted Materials: Stainless Steel
- Approximate System Weight: 2,000 lbs
- Coolant Supply & Return Lines: 1/2″ Swagelok
- Custom built vacuum jacketed and insulated coolant lines

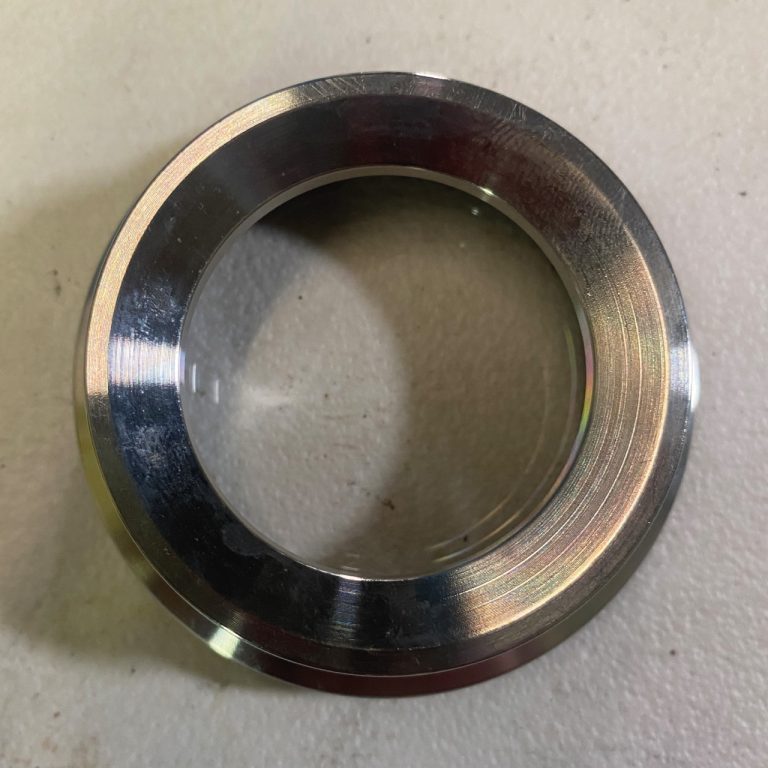

Custom stainless steel DIN 7080 Tempered Borosilicate Sight glasses in any size.

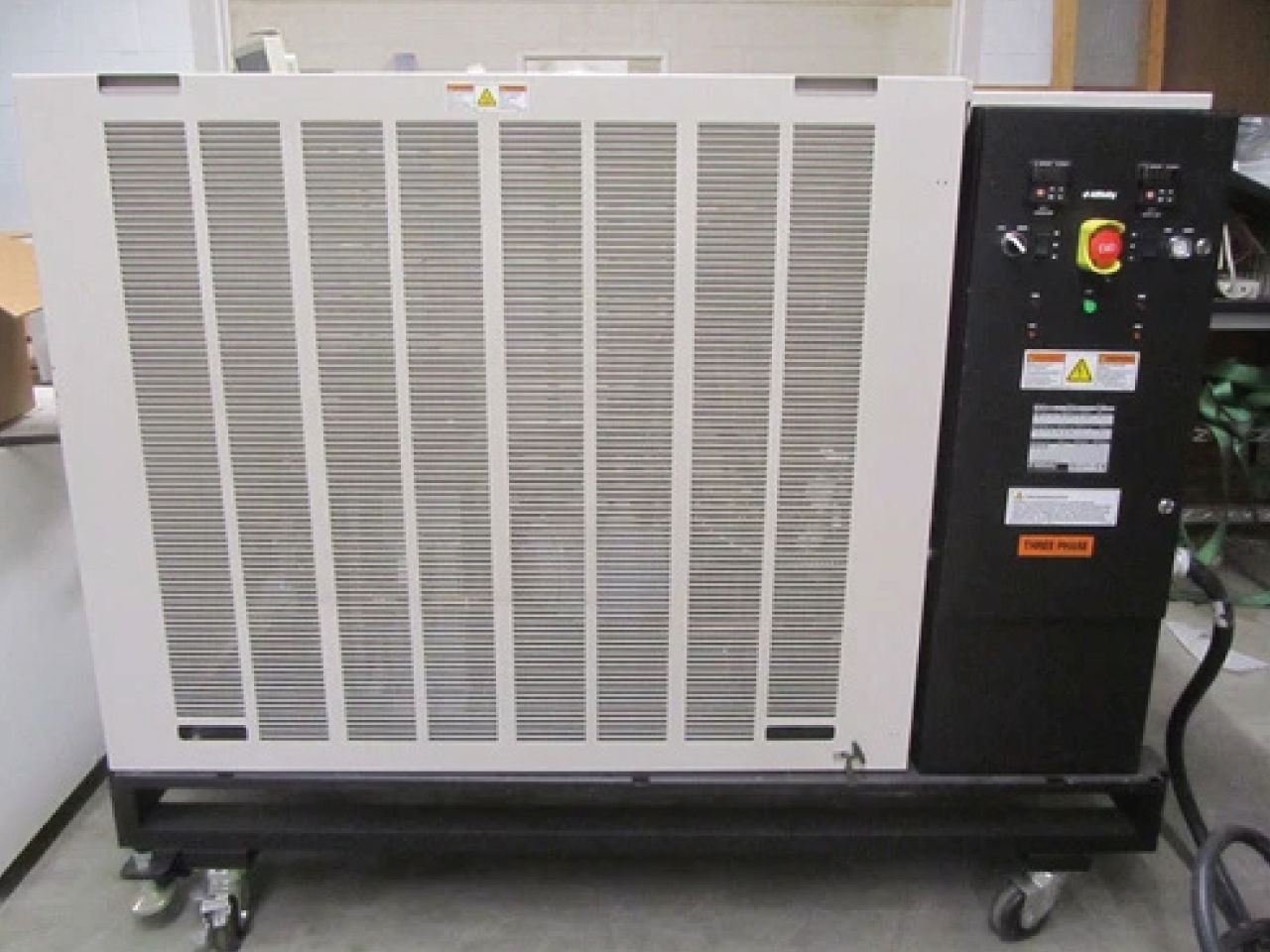

Dual Circuit Chiller Ballast System
Dual circuit chiller ballast system is cooled by your facility water system. In turn it provides stabilized cooling to the low temperature chillers, the extractor systems solvent recovery tank and can be used as the heat for solvent recovery all at the same time.
Specifications
- Heat Rejection: water cooled
- Temperature Range: -5F to 60F
- Cooling Capacity: 10kW @-5F
- Flow Rate: 12gl a minute@ 70psi
- Fluid: HFE 7200
- Tank Capacity: 15 GALLONS
- Power Requirement: 208V, 3 PHASE, 60HZ, 80 amp
- Frame Dimensions: 55”WX40”DX63”H
- Pump Type: dual pump, rotary vein/ hp turbine
- Wetted Materials: Hard plumbed Copper, stainless steel
- Approximate System Weight: 750 lbs
- Coolant Supply & Return Lines: 3/4″ npt female
